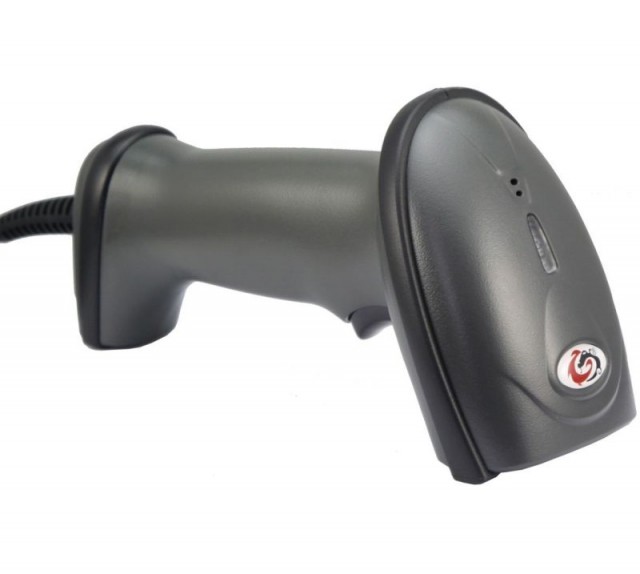

Snímač čiarových kódov laserový USBKód: SUNLUX XL-6200 USB | | | |
SUNLUX XL-6200A - laserový snímač SUNLUX , rozhranie USB . Snímač XL-6200A má skenovací výkon 100 snímok za sekundu, a to zaručuje rýchle a presné načítanie čiarových kódov . Možnosť nastavenia USB virtuálneho COM portu. Laserový skener s automatickým snímaním čiarových kódov v stojane.
XL-6200A snímač čiarových kódov so stojanom |
- customer setting: Barcode setting mode, easy toOPERATE
|
- Scan Depth of field up to 350mm
|
- Antiknock design: withstand 1.5M drops
|
- Support 20 countries keyboard languages
|
- Service life of button reaches up to 50 million times
|
- Supporting the RS232, PS2 and USB interface
|
- Full independent intellectual property rights
|
|
XL-6200A Technical Specifications |
PERFORMANCE PARAMETER |
Light Source |
Visible Laser Diode 650nm |
Scan Pattern |
Single Scan |
Scan Rate |
100 times/second |
Scan Precision |
4mil |
Scan Width |
30mm@scan window, 220mm@200mm |
Scan Depth of field |
0-350mm (0.33mm pcs0.9) |
Decode Capability |
EAN-8, EAN-13, UPC-A,UPC-E,Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc. |
Tilt |
30 |
Elevation Angle |
65 |
Deflection Angle |
55 |
Support Inferface |
RS232, PS2 and USB |
Print Contrast |
30% UPC/EAN 100% |
Mention Pattern |
Buzzer, Indicator |
Scan Mode |
Automatic & Manual & continue scanning |
MECHANICAL PARAMETER |
Size |
L x W x H: 170mm x 68mm x 98mm |
Weight |
153g |
Material |
ABS + PC |
Cable |
Standard 2M straight |
ELECTRICAL PARAMETER |
Voltage |
5VDC |
OPERATING Current |
85mApeak current (120 mA ) |
Static Current |
36mA |
Laser Class |
Meet the Grade I National Criteria for Laser Safety |
EMC |
CE & FCC DOC compliance |
ENVIRONMENTALPARAMETER |
OPERATING Temperature |
0°C to45°C |
Storage Temperature |
-20°C to60°C |
Humidity |
5% to 85% relative humidity, non-condensing |
Light Levels |
Daylight, 5000Lux |
Shock |
Designed to withstand 1.5M drops |
Cena: 33,85 € Cena s DPH: 40,62 €
|
|
